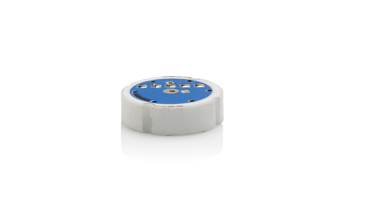

Pressure Sensors ceramic flush mounted CPS 2184陶瓷压力传感器
Pressure Sensors ceramic flush mounted CPS 2184陶瓷压力传感器具有优良的耐化学腐蚀性、结实可靠的设计、温度被补偿、易于组装、清洗方便的特点。
Features 特点
- excellent chemical resistance 优良的耐化学腐蚀性
- robust design 结实可靠的设计
- temperature compensated 温度被补偿
- easy to assemble 易于组装
- easy to clean 清洗方便
Applications 应用
- brake systems 制动系统
- forklift trucks 叉式升降机
- pneumatic 气胎
- hydraulic 液压
- electronic pressure switches 电子压力开关
- electronic pressure transmitters 电子压力转换器
- food industry 食品行业
- pharma division 制药部门
Features 特点
- excellent chemical resistance 优良的耐化学腐蚀性
- robust design 结实可靠的设计
- temperature compensated 温度被补偿
- easy to assemble 易于组装
- easy to clean 清洗方便
Applications 应用
- brake systems 制动系统
- forklift trucks 叉式升降机
- pneumatic 气胎
- hydraulic 液压
- electronic pressure switches 电子压力开关
- electronic pressure transmitters 电子压力转换器
- food industry 食品行业
- pharma division 制药部门
参数说明书下载链接：/filedownload/CPS 2184
| Technical specifications技术规格 | |
| Supply voltage供电电压 | 4...30 VDC |
| Impedance阻抗 | 10 kOhm ± 20 % |
| FS output (Span)FS输出（跨度） | Min. 1.5 / typ. 3.2 / max. 6 mV/V |
| Offset偏移量 | 0 ± 0.2 mV/V |
| Therm. offset shift热偏移量 | Typ. 0 ± 0.015 / max. 0 ± 0.03 % FS/K (25 ... 85 °C) |
| Therm. span shift热分辨率 | 0...−0.013 % FS/K (0...70 °C) 0...−0.015 % FS/K (−20...0 °C / 70...85 °C) 0...−0.018 % FS/K (−40...0 °C / 85...135 °C) |
| Insulating resistor绝缘电阻 | >1 Gohm @ 500 VDC, RT, 70 % rH (mounting 16.00mm) |
| Insulating voltage绝缘电压 | > 0.5 kVDC with minimal membrane thickness, from medium to printed circuit |
| Body material主体材质 | Al₂ O3³ 96 % |
| Operating temperature工作温度 | −40 ... +135 °C |
| Storage temperature贮存温度 | −40 ... +150 °C |
| Mechanical and electrical characteristics are customisable. Specifications are subject to change without notice. We recommend that customers perform their own tests for new or untested applications. |
|
| PRESSURE RANGE (BAR)压力值 | LONG THERM STABILITY * 长期热稳定性 | LINEARITY /HYSTERESIS (TYP./MAX.) (% FS) **线性度/回差 | Burst pressure破裂压力 | OVER-PRESSURE (BAR) *** 极限压力值 | VACUUM CAPABILITY (BAR)真空特性 | TYPE 外形 |
| 0.5 | ± 0.25 | ± 0.3/0.6 | ≥1.5 | ≤ 1 | −0.1 | Rel |
| 1 | ± 0.25 | ± 0.25/0.6 | ≥2.5 | ≤ 1.5 | −0.4 | Rel./ Abs |
| 2 | ± 0.2 | ± 0.2/0.5 | ≥5 | ≤ 3 | -0.6 | Rel./ Abs |
| 5 | ± 0.2 | ± 0.2/0.5 | ≥ 12 | ≤ 7.5 | −1 | Rel./ Abs |
| 10 | ± 0.2 | ± 0.2/0.4 | ≥ 25 | ≤ 15 | −1 | Rel./ Abs |
| 20 | ± 0.15 | ± 0.2/0.4 | ≥ 40 | ≤ 30 | −1 | Rel./ Abs |
| 50 | ± 0.2 | ± 0.2/0.4 | ≥ 100 | ≤ 75 | −1 | Rel./ Abs |
| 100 | ± 0.25 | ± 0.25/0.5 | ≥ 250 | ≤ 150 | −1 | Sealed gauge |
| 200 | ± 0.25 | ± 0.25/0.6 | ≥ 400 | ≤ 300 | −1 | Sealed gauge |
| 400 | ± 0.25 | ± 0.25/0.6 | ≥ 600 | ≤ 500 | −1 | Sealed gauge |
| 600 | ± 0.25 | ± 0.3/0.6 | ≥ 700 | ≤ 700 | −1 | Sealed gauge |
| * 1000 hours @ 150 °C | 50 million pressure cycles @ 80 °C, 10 – 90 % FS @ 2.5 Hz | 3 thermal shocks +125 °C/−20 °C, 3 K/sec | 50 thermal cycles +135 °C/−40 °C, 2 K/min. ** For indipendent linearity 10 points are measured and compared to an ideal straight line. | For all measurements, DUT’s are mounted in Metallux standard Housing according to "mounting proposa CPS 2184-ND-HD". ***Over-Pressure indicates the maximum (short time < 1 s) operating pressure within no irreversible damage to the printed circuit are expected. |
||||||
| Sample Order订货样本 | |||
| Type型号 | Pressure range in bar压力值 | Pressure type压力类型 | Electrical connection (acc. to drawing) 电气连接 |
| CPS 2184 | 100 bar | A/R/SG | Solder pads |
| Other materials, dimensions and electrical specifications on request. | |||
